58 AD System Energy

Availability:
Quantity:
  • Kömmerling

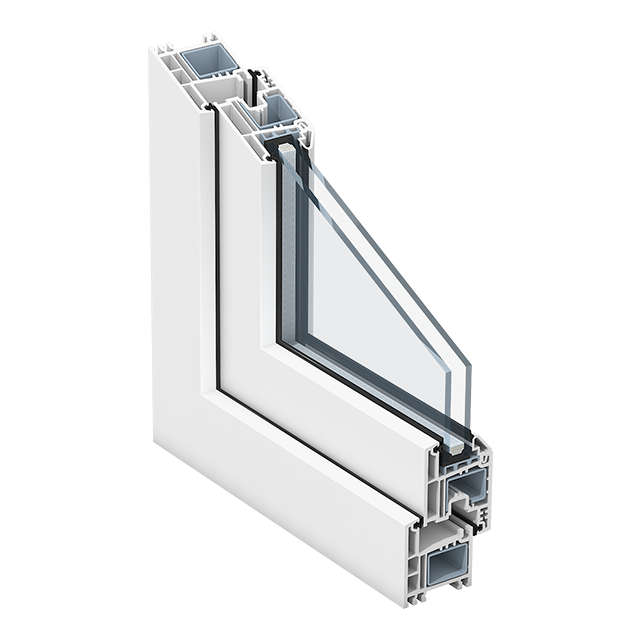

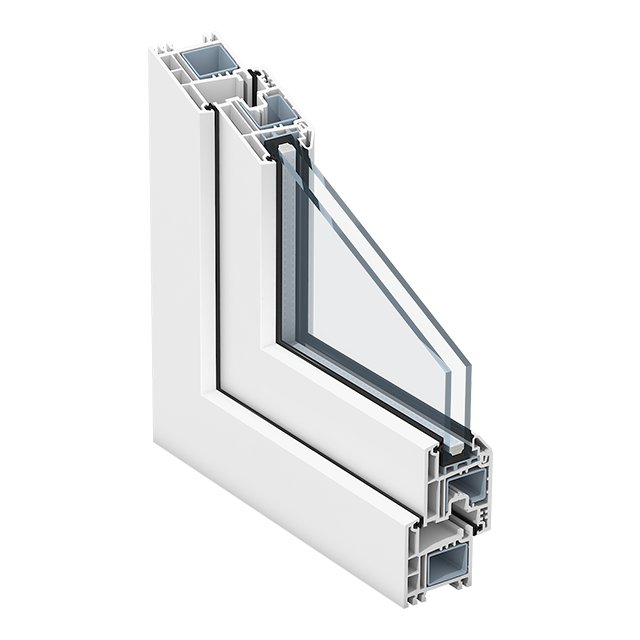

· 58mm construction depth casement window;

· The sight surface thickness of the main profile can reach 3.0 mm comply with Class A, Highly welding corner strength and impact resistance;

· 3 Chamber design, U Value reach1.7W/(m²K);

· Unique bevel rebate area design so that a more smoothly water drainage;

· Striker can be directly connected with steel reinforcement, Improve the security and anti-theft performance of doors and Windows;

· Glazing range 4-32mm;

· Available finish in homogenous white, color laminated foil, homogenous body color.


传热系数

Coefficient of thermal

抗风压性能

Wind load resistance

气密性能

Air permeability

水密性能

Water proof

保温性能

Thermal insulation

隔声性能

Sound insulation

可达

Up to

1.7W/(m²K)

8级

Class 8

5级

Class 5

5级

Class 5

7级

Class 7

3级

Class 3
