62 Lift And Sliding Door System

Availability:
Quantity:
  • Kömmerling

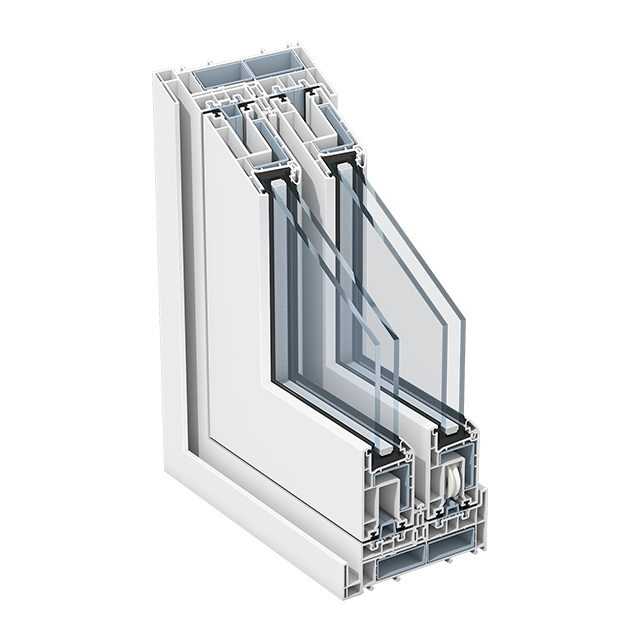

· 174mm construction depth, Sash is 62mm depth with 37mm thick glazing, enhance its static stability and wind load resistance performance. With appropriate hardware, it can be fabricated to a giant door.

· The sash is constructed with 2 chambers. The independent front drainage chamber is combined with the classic Sash-glazing slope to make drainage more smooth.

· Using the unique hardware, achieving that lifting up to open then sliding, descend to locking. The system cleverly uses the concept of rubber gasket sealing, supplemented by the water proof block between the inner and outer sashes, greatly improves the waterproof, airtight and sound insulation performance of this sliding system, which is also conforming to the concept of energy saving.

· Optional double-layer locking enables ventilation of the door when the door is closed. Compared with the traditional sliding system, the multi locking point also greatly improves the anti-theft performance.



传热系数

Coefficient of thermal

抗风压性能

Wind load resistance

气密性能

Air permeability

水密性能

Water proof

保温性能

Thermal insulation

隔声性能

Sound insulation

可达

Up to

1.8W/(m²K)

6级

Class 6

4级

Class 4

4级

Class 4

7级

Class 7

3级

Class 3
