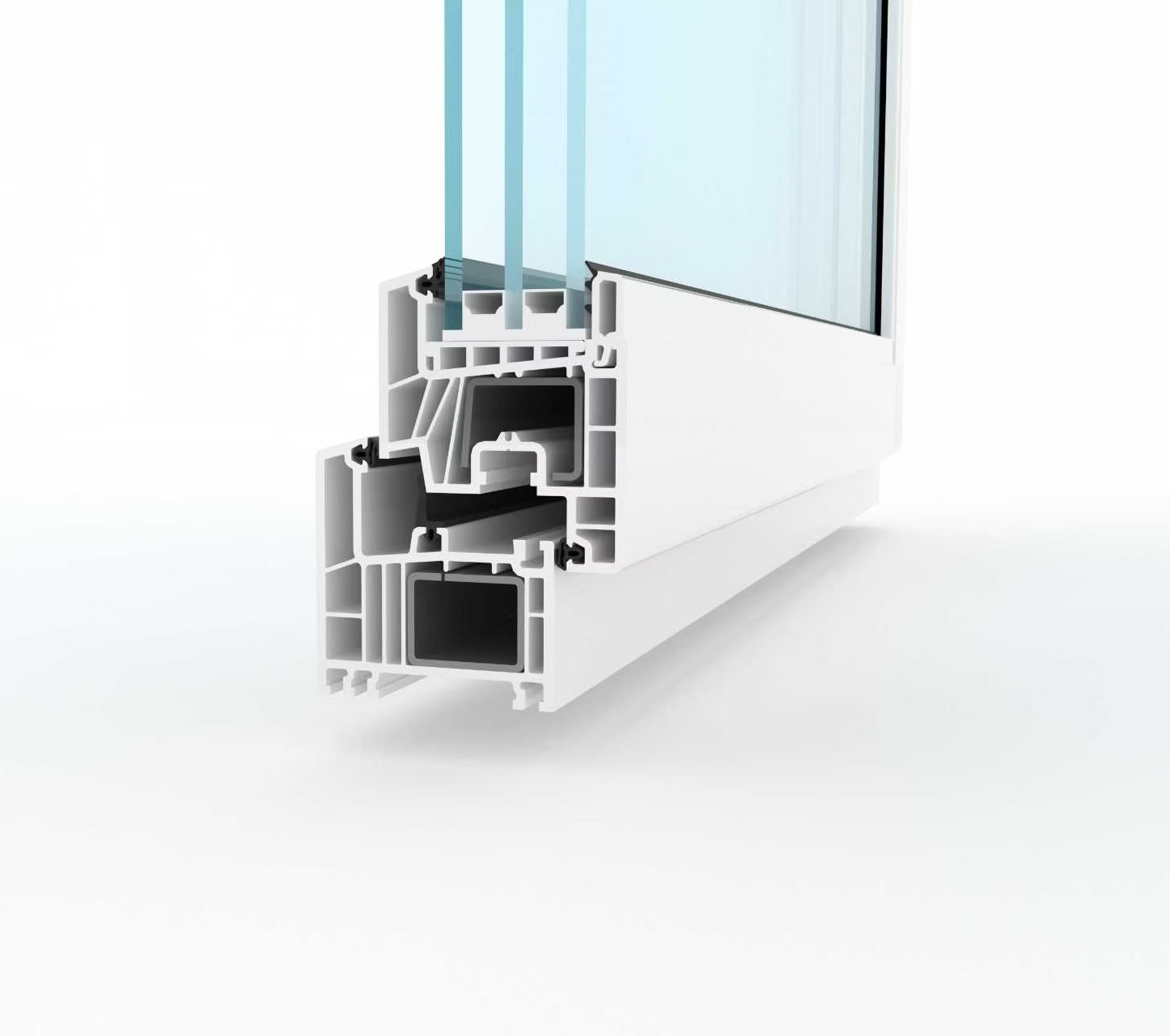

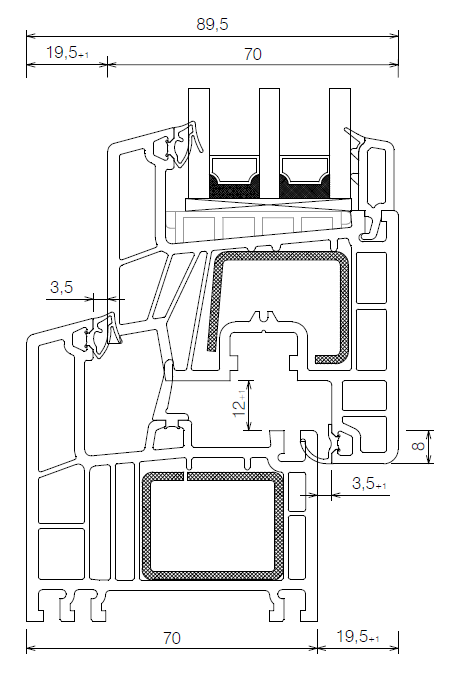

· 70mm structural depth, visible wall thickness of main profile up 2.8to mm;
· Derived from the Trocal brand design style of Profine Group , the unique middle sealing strip makes the system have a three-layer sealing structure, ensuring excellent air-tightness under strong wind pressure; weldable PCE or EPDM strips are optional；
· The U-value of 5-chamber design can reach 1.2W/(m²K ) ;
· The glass thickness reaches 40mm , which can be adapted to high-performance three-glass and two-chamber insulating glass, further improving the thermal insulation and sound insulation performance of the entire window;
· Due to the addition of the middle seal, external moisture is blocked from the middle seal, which protects the hardware;
· Available in white, outer color co-extrusion, color lamination, and full-body color schemes.
· 70mm structural depth, visible wall thickness of main profile up 2.8to mm;
· Derived from the Trocal brand design style of Profine Group , the unique middle sealing strip makes the system have a three-layer sealing structure, ensuring excellent air-tightness under strong wind pressure; weldable PCE or EPDM strips are optional；
· The U-value of 5-chamber design can reach 1.2W/(m²K ) ;
· The glass thickness reaches 40mm , which can be adapted to high-performance three-glass and two-chamber insulating glass, further improving the thermal insulation and sound insulation performance of the entire window;
· Due to the addition of the middle seal, external moisture is blocked from the middle seal, which protects the hardware;
· Available in white, outer color co-extrusion, color lamination, and full-body color schemes.
