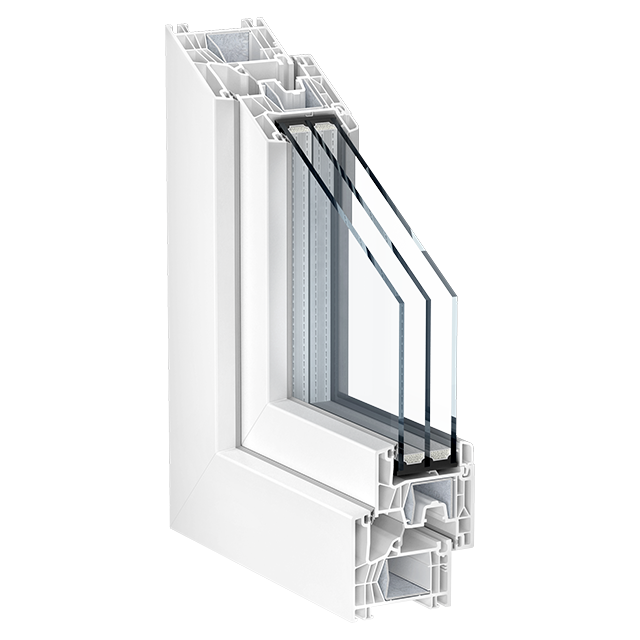

System 76 MD

Availability:
Quantity:
  • Kömmerling

· Centre seal system with 76 mm installation depth, in a modern design;

· Weldable PCE or EPDM gasket in light grey or black;

· Intelligent chamber design for high thermal stability;

· Fast and effective ventilation either to the front or invisibly downwards;

· Wide range of extensions and ancillary profiles for simple and professional installations;

· 16 - 50 mm panes and paneling also possible;

· Simple and reliable installation safeguarded by support lobes and additional thicknesses in the screw channels;

· Additional sash rebate gasket for enhanced thermal insulation;

· Slender sight line with high thermal insulation.



传热系数

Coefficient of thermal

抗风压性能

Wind load resistance

气密性能

Air permeability

水密性能

Water proof

防盗性能burglar-resistant

隔声性能

Sound insulation

可达

1.0W/(m²K)

C5/B5等级

Class C5/B5

4等级

Class 4

9A

RC2

47dB
